Automatic arm surroundings
By Innova

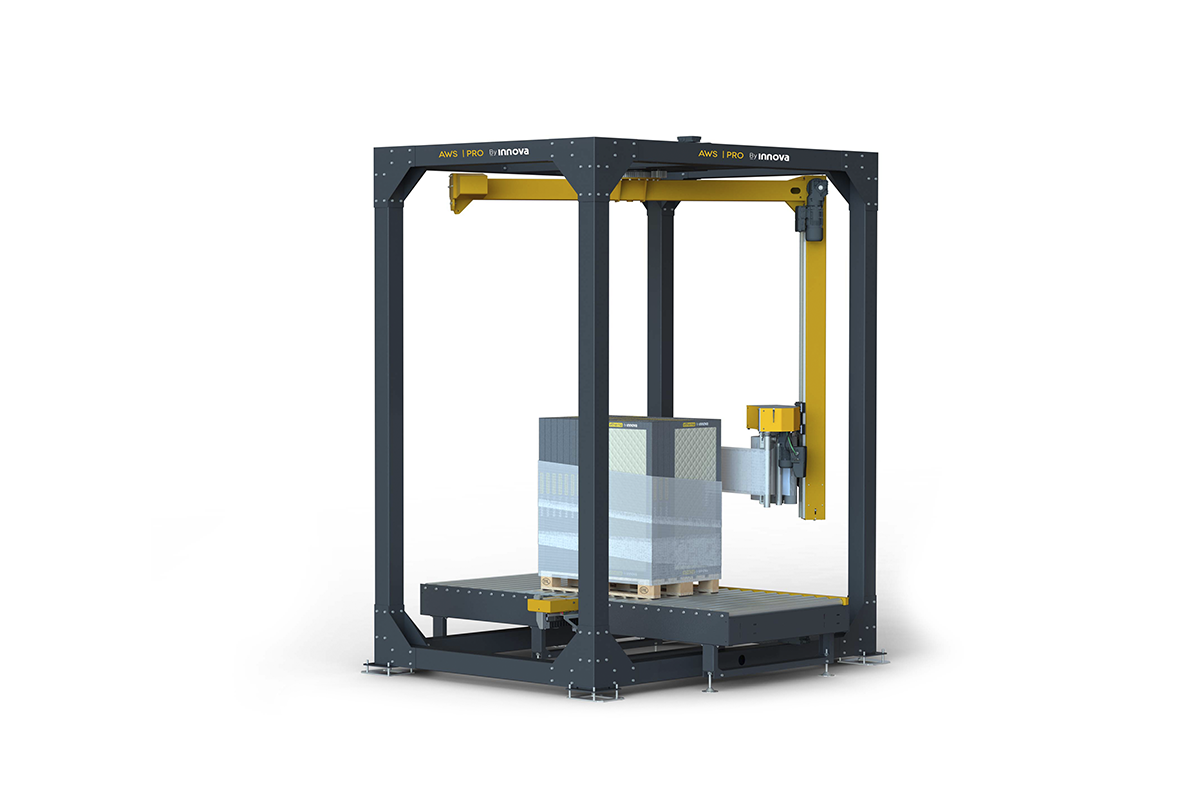

The arm wrapper is Innova's most versatile. Through the baling arm and a wide variety of available accessories, it adapts to any type and size of load. Innova's arm wrapper is one of the most efficient and sustainable, as it incorporates components and motors with low energy consumption, as well as a pre-stretch system of up to 400% to reduce film consumption.
Servitech needs the information below to prepare your budget.
If not provided now, our sales team will contact you later.
The fastest baling arm
Innova's arm packaging system completes a packaging cycle in just 32 seconds per cycle. It includes a dual carriage option with two wrapping arms for greater speed and efficiency.
It is a versatile and fast wrapper that adapts to any end of the production line.
Lower stretch film consumption
The arm wrapper is designed for the lowest film consumption thanks to its electronic wrapping technology with torque control system. It also allows pre-stretching of the film by up to 400% to save film.
The new arm pallet wrapping machine uses the exact amount of stretch film required according to the load and pallet dimensions.
Packaging finishing with tying system
Finished packaging without film residue thanks to its exclusive film cutting and tying system.
Wrapping ultra-high loads
The new arm wrapper includes a modular structure and wrapper models available to suit different load sizes. It allows the packaging of loads from 200mm to 2,400mm and more as required.
Its robust 4-pillar structure offers greater stability during packaging, one of the most sought after advantages in high-speed production lines.
Load protection and securing accessories
The system includes a wide range of accessories to improve final cargo securing and protection. Regarding protection, an automatic top coat applicator system can be included to protect against external elements. As a new feature, it also includes a corner applicator system before baling to ensure the homogeneity of the boxes.
In terms of fixing, it has a superior fixing support for light or unstable loads, offering greater stability and safety during the packaging process.
The most efficient automatic wrapper
Innova's arm wrapper is one of the most efficient and sustainable machines on the market, incorporating components and motors with low energy consumption.
Furthermore, it has a lighter model structure, thus reducing the carbon footprint and saving space in the factory.
Technical Specifications
| AWS ENGINEER | PRO | |
| Production capacity: | Up to 80 pallets/h |
| Operating film thickness: | 15 - 35 μm |
| Maximum allowable load dimensions: | 1,300 x 1,250 mm (see large formats) |
| Maximum allowable loading height: | 2,400 mm (adaptable to customer maximum dimensions) |
| Maximum load weight: | 2,000 kg (adaptable to other customer loads) |
| Number of coils: | 1 to 2 (depending on customer needs) |
| Accessories: | Cover applicator on top of load |
| Upper load securing applicator during packaging | |
| Angle applicator and modular angle magazine | |
| Bottom fixing, for low weight pallets |
Technical Specifications
Used in all sectors.
