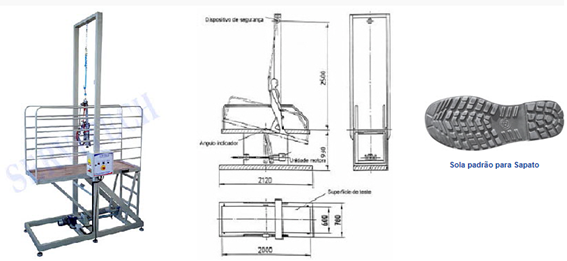

Structure made of painted steel, with a tiltable ramp to support 100x50cm panels with ceramic coatings glued to their surface.

• A plan (600x2000mm) inclined from 0° to 45º, using an electromechanical drive;

• Handrails and harnesses for maximum operator safety;
• Maximum tilt speed of 1º/s;
• Inclinometer with precision ± 0.1° for critical safety assessment;
• Parachutist Rope and Safety Belt;
• A pair of standard shoes with leather soles nitril-caoutchouc, hardness on the shore A scale of 73 ± 5, nº 41-42;
• 1L of standardized mineral oil (SAE 10W30);
• An aluminum ladder;

• 380V power supply; 60HZ; 0.22KW;

Instrument used to determine the dynamic coefficient of friction of
surfaces, in accordance with standard DIN 51130 and ISO 10545–17.
