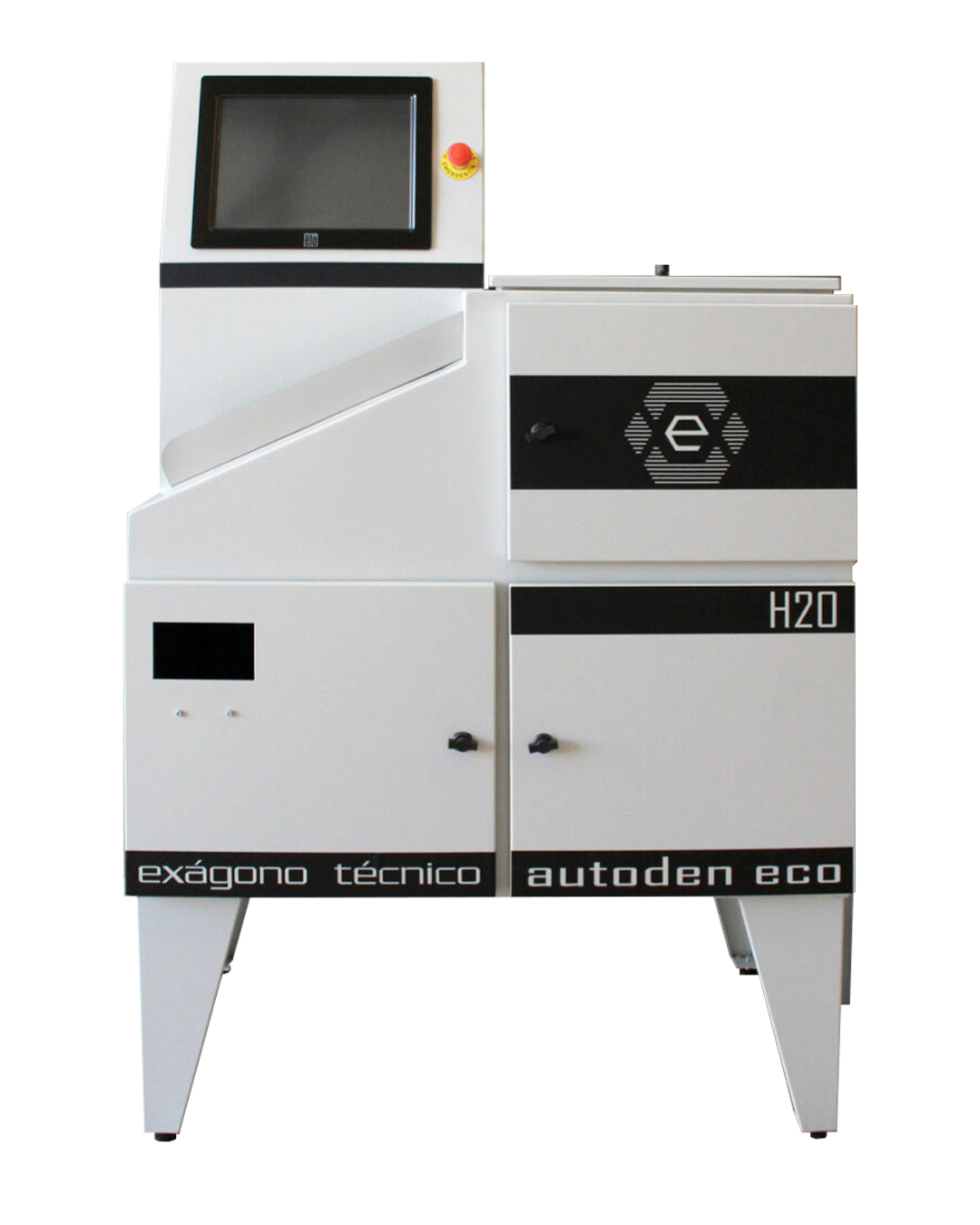

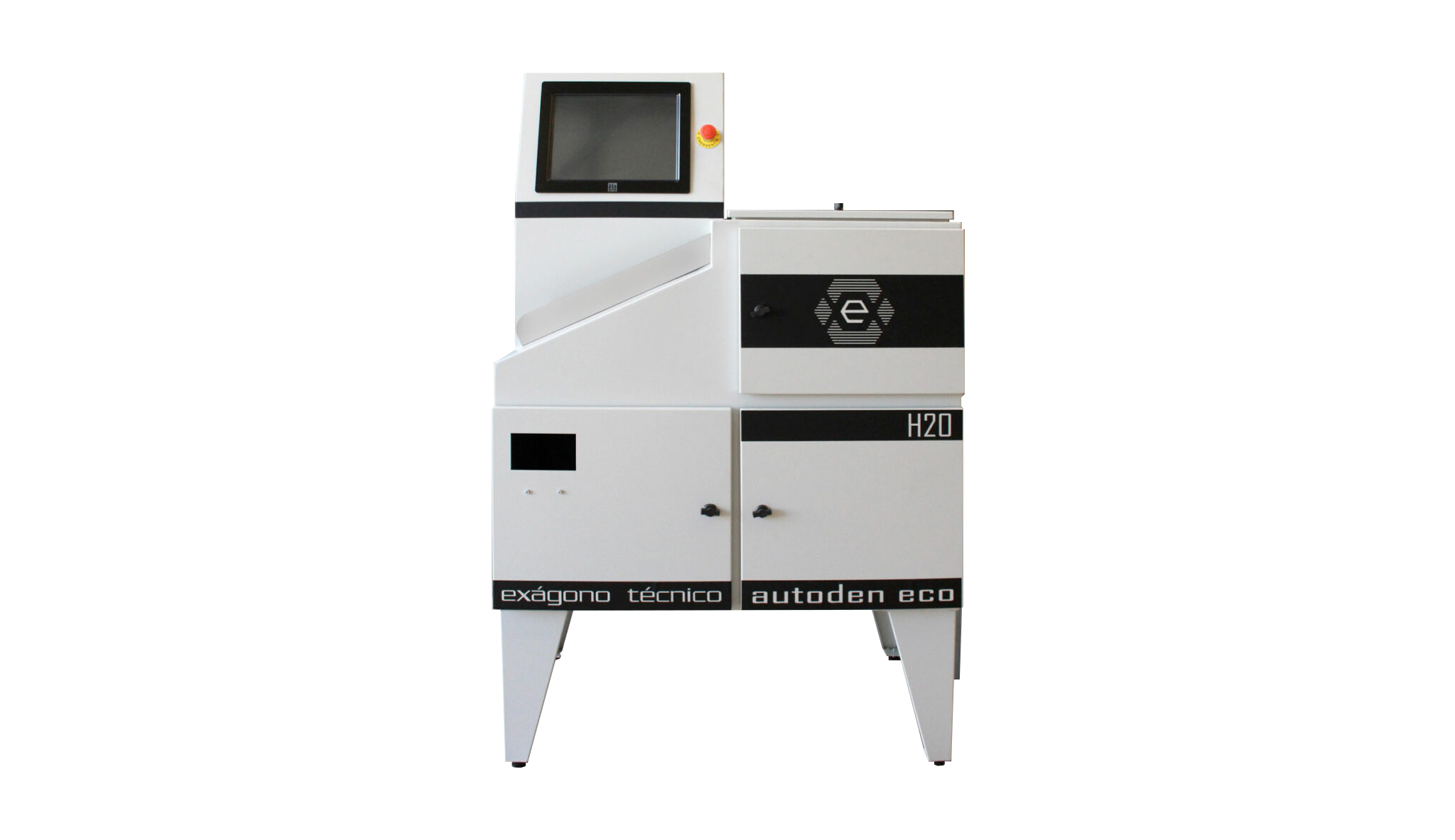

AUTODEN ECO V6.1 DENSITY METER

Technical Exagon

12524

The definitive solution for measuring apparent density WITHOUT MERCURY.

The Autoden ECO apparent density calculation machine is a tool that allows you to know the mass per unit volume (g/cm³) in a series of samples taken from a pressed (raw) tile.

Servitech needs the information below to prepare your budget.
If not provided now, our sales team will contact you later.

  • H₂O measurement system.
  • Measurement uncertainty: ±0.005 g/cm³
  • It works on the mercury (Hg) scale.
  • Measuring speed: 15 seconds/sample
  • Maintains accuracy even if the sample is broken or poorly cut.
  • Designed to work in industrial environments.
  • Self-calibrating equipment.
  • Always keep the scale with Mercury 1:1
  • Manufactured with high-resistance industrial components
  • Prints and saves the results in a database.
  • High reliability and low maintenance.
The advantages it presents in relation to other systems

Minimum Maintenance: The simplicity of the movement system, software and calculation process allows continuous operation with extremely low maintenance costs. The only replacement items required are replacement membranes and distilled water.

Technical Independence: Unlike systems that rely on complex technologies such as laser or ultrasound, Autoden ECO has a simplified architecture. This facilitates repairs and eliminates dependence on outsourced components – often from foreign multinationals –, which can make technical assistance more expensive and difficult.

Operational Robustness: The machine accepts samples with irregular or even broken cuts, without losing precision. While laser systems require perfect cuts made with special shears – as any imperfection compromises optical reading – Autoden ECO maintains its accuracy regardless of the surface condition of the part.

Tolerance to Hostile Environments: Designed for the factory floor, the machine is immune to the industrial dust typical of pressing sectors. Non-contact measurement systems, on the other hand, are sensitive to particle contamination of the emitters, which interferes with the light beam and impairs the measurement.
